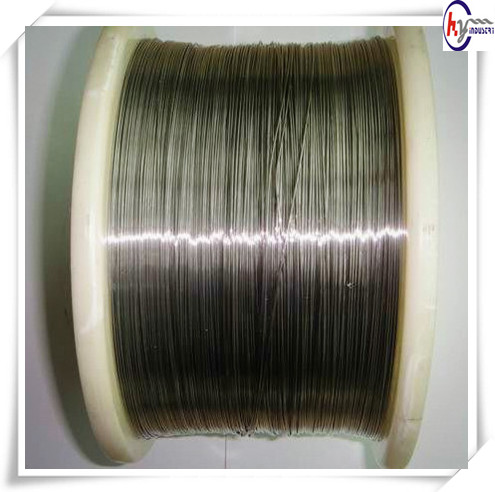

Heat Resistant Wire 0Cr23Al5 Fe-Cr-Al Alloy wire

\

Short Introduction:

HY 0235/0Cr23Al5/0Al5Cr23 is Fe-Cr-Al Alloy.


  • Fob price: US $ 25 - 80 / Kilogram
  • Min.order quantity: 300kg
  • Port: Shanghai
  • Payment terms: L/C,T/T,30% down payment after order, balance against copy of B/L
  • Product Detail

    Product Tags

    HY 0235 Material grades and equivalents

    0Cr23Al5 / 0Al5Cr23

    HY 0235 Grade property performance

    Grade property performance

    HY 0235

    % Main Chemical Composition

    Cr

    20.5~23.5

    Al

    4.2~5.3

    Fe

    Balance

    Mn

    ≤0.7

    Nb

    ℃ Max contimnous service Temp. of element

    1250

    Resistivity mm2/m

    1.35±0.06

    10-5/℃ Temp coeff of resistance

    5

    g/cm3 Density

    7.25

    Melting point≈ ℃ (approxi)

    1500

    Tensile strength N/mm2

    637~784

    % Elongation

    >12

    % Reducation of Area

    65~75

    Hardness(HB)

    200~260

    Regular shape for all kinds of alloys
    Form Specification Supply Form Others
    Sheet Thickness:0.40-4.75mm,General Width:1000、1219、1500mm Whole Coil or piece of it Cold Annealed,Surface 2B、2E
    Plate Thickness:4.76-60mm,Width:1500、2000、2500mm,Length:3000、6000、8000、8500mm(Under 10mm plate can be coiled) Whole Coil or piece of it Single hot rolling,Solid solution annealed state,Surface 1D
    Belt Thickness:0.10-3.0mm,Width:50-500mm Whole Coil or Specified size Cold Annealed,Surface 2B、2E
    Bar & Rod Rolled barΦ5-45mm,Length≤1500mm Polished Bar(circle、Square) Solution annealing,descaling
    Forged barΦ26-245mm,Length≤4000mm
    Weld tube Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm Base on your requirement
    Seamless Tube Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm Base on your requirement
    Wire Outer diameterΦ0.1-13mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Forged piece discs,rings,squares,blocks,slabs Base on your requirement Steel, Alloy
    Flangs All kinds of Flangs Base on your requirement Steel, Alloy
    Welding Material Coil wire Φ0.025mm-1.6mm Base on your requirement Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.
    Straight WireΦ1.6mm-4.0mm
    Welding rodΦ1.2mm-4.0mm
    Tube Elbow, three links, four links, different diameter size Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Explosive bonded laminate Raw Sheet Thickness≥2mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
