Nickel Alloy Inconel 690 UNS N06690

Short Introduction:

HY 690 / Inconel 690 / UNS N06690 / W. Nr. 2.4642 is a kind of nickel based wrought super alloy which has excellent resistance to many aqueous medium and ability of high temperature atmosphere erosion. It also has high strength , good stability and excellent characteristics for metallurgical processing.

Fob price: US $ 25 - 80 / Kilogram

Min.order quantity: 300kg

Port: Shanghai

Payment terms: L/C,T/T,30% down payment after order, balance against copy of B/L

Send email to us Download as PDF

Product Detail

Product Tags

HY 690 Material grades and equivalents

Inconel 690 / UNS N06690 / W. Nr. 2.4642

HY 690 Chemical composition:

Type	% Main Chemical Composition %
Type	Ni	Cr	Fe	Cu	C	Si	Mn	S
HY 690	Rest	27.0～31.0	7.0～11.0	≤0.05	≤0.05	≤0.5	≤0.5	≤0.015

HY 690 Physical properties：

Density	Melting range	Hardness

8.73	1338～1380	HRC36

HY 690 Alloy minimum mechanical properties in the room temperature

Condition	Tensile Strength Rm N/mm²	Yield strength R P 0. 2N/mm²	Elongation
			A 5 %
Solution	690～738	334～372	44～50

HY 690 Characteristic as below

HY 690 alloy is a kind of nickel based wrought super alloy which has excellent resistance to many aqueous medium and ability of high temperature atmosphere erosion. It also has high strength , good stability and excellent characteristics for metallurgical processing.

Specifications：

Rod, Bar, Wire and Forging Stock	ASTM B166; ASME SB 166, ASTM B 564; ASME SB 564, ASME Code Case N-525, ISO 9723, MIL-DTL-24801
Seamless Pipe and Tube	ASTM B 163; ASME SB 163, ASTM B 167; ASME SB 167, ASTM B 829; ASME SB 829, ASME Code Cases 2083, N- 20, N-525, ISO 6207, MIL- DTL-24803
Plate, Sheet, and Strip	ASTM B168; ASME SB 168; ASME N-525, ISO 6208, MIL-DTL-24802
Welding Products	INCONEL Filler Metal 52 – AWS A5.14 / ERNiCrFe-7; INCONEL Welding Electrode 152 – AWS A5.11 / ENiCrFe-7

Regular shape for all kinds of alloys
Form	Specification	Supply Form	Others
Sheet	Thickness：0.40-4.75mm，General Width：1000、1219、1500mm	Whole Coil or piece of it	Cold Annealed，Surface 2B、2E
Plate	Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled）	Whole Coil or piece of it	Single hot rolling，Solid solution annealed state，Surface 1D
Belt	Thickness：0.10-3.0mm，Width：50-500mm	Whole Coil or Specified size	Cold Annealed，Surface 2B、2E

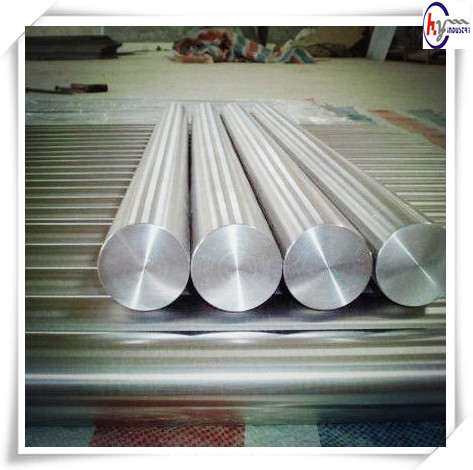

Bar & Rod	Rolled barΦ5-45mm，Length≤1500mm	Polished Bar（circle、Square）	Solution annealing,descaling
Bar & Rod	Forged barΦ26-245mm，Length≤4000mm	Polished Bar（circle、Square）	Solution annealing,descaling
Weld tube	Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm	Base on your requirement

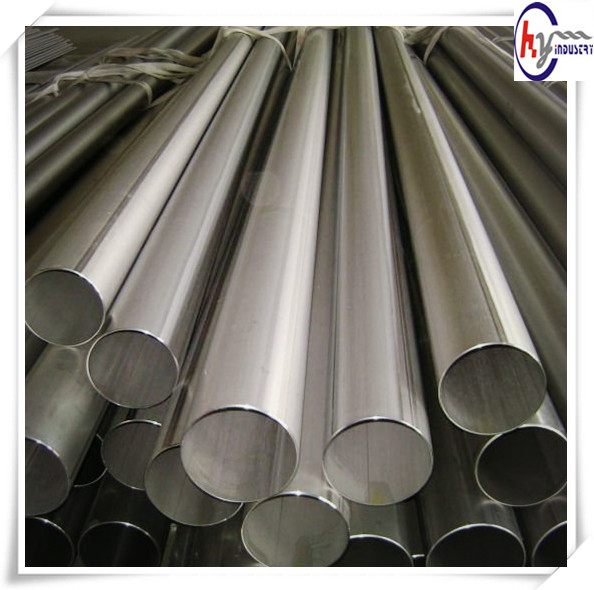

Seamless Tube	Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm	Base on your requirement

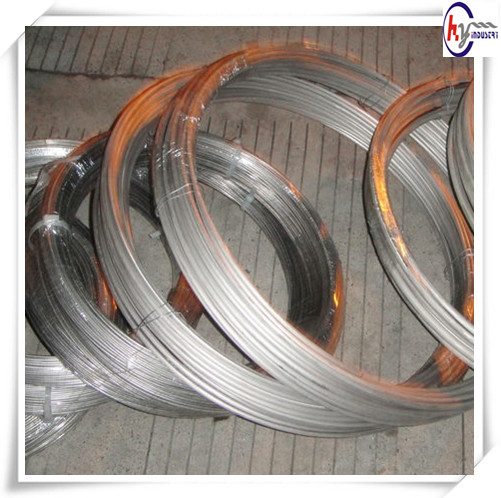

Wire	Outer diameterΦ0.1-13mm	Base on your requirement	Ni & Ni alloy, Ti & Ti alloy
Forged piece	discs,rings,squares,blocks,slabs	Base on your requirement	Steel, Alloy
Flangs	All kinds of Flangs	Base on your requirement	Steel, Alloy
Welding Material	Coil wire Φ0.025mm-1.6mm	Base on your requirement	Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France.
	Straight WireΦ1.6mm-4.0mm
	Welding rodΦ1.2mm-4.0mm
Tube	Elbow, three links, four links, different diameter size	Base on your requirement	Ni & Ni alloy, Ti & Ti alloy
Explosive bonded laminate	Raw Sheet Thickness≥2mm	Base on your requirement	Ni & Ni alloy, Ti & Ti alloy
