Nickel Alloy Monel K500 UNS N05500

\

Short Introduction:

HY MK-500 /모넬 K-500 / W Nr.2.4375 / 니켈 - 구리 합금 500 / UNS N05500약 두 배의 인장 강도 및 합금 (400) 1200 화씨로 유지되는 합금 K-500의 강도의 트리플 항복 강도를 가지고 있지만, 연성과 -400 화씨 온도에 이르기까지 힘든 유지됩니다. 합금 K-500도 -200도 화씨 비자 유지됩니다.


  • Fob price: US $ 25 - 80 / Kilogram
  • Min.order quantity: 300kg
  • Port: Shanghai
  • Payment terms: L/C,T/T,30% down payment after order, balance against copy of B/L
  • Product Detail

    Product Tags

    HY MK-500  재질 등급과 동등

    모넬 K-500 / W Nr.2.4375 / 니켈 - 구리 합금 500 / UNS N05500


    HY MK-500 화학 성분 :

    합금

    %

    Ni

    Cu

    Al

    Ti

    Fe

    Mn

    S

    C

    Si

    Monle K500

    Min.

    63

    27.0

    2.30

    0.35

    Max.

    33.0

    3.15

    0.85

    2.0

    1.5

    0.01

    0.25

    0.5

    HY MK-500 물리적 특성 :

    Density

    8.44 g / cm3

    Melting point

    1,315에서 1,350 사이 ℃

    HY MK-500 실내 온도에서 최소한의 기계적 특성 :

    양식 조건 최대. 섹션 두께,. (mm) 인장 강도 최소. KSI. (MPA) 강도 Min.Ksi 항복. (MPA) 2에서 신장, 또는 4D, 분., % Hardness
    HB의 분. 열연 강판 분.
    라운드 바, 육각형, 사각형, 사각형 및 단조 핫 근무하고 나이는 경화 모든 크기 (140) (965) 100 (690) 20 265 27
    라운드 바 냉간 가공과 나이 경화 1/4 (6.4) 1 (25.4) 145 (1000) (110) (760) 15 300 32
    1 이상 (25.4) 3 (76.2) (140) (965) 100 (690) 17 280 29
    3 이상 (76.2) 4 (101.6) 135 (930) 99 (655) 20 255 25
    육각형 냉간 가공과 나이 경화 1/4 (6.4) 2 (50.8) (140) (965) 100 (690) 15 265 27
    라운드 바, 육각형, 사각형, 사각형 및 단조 어닐링과 나이 경화 최대 1 (25.4) (130) (895) 90 (620) 20 250 24
    1 (25.4) 이상 (130) (895) 85 (585) 20 250 24

    HY MK-500은 약 두 배의 인장 강도 및 합금 (400) 1200 화씨로 유지되는 합금 K-500의 강도의 트리플 항복 강도를 가지고 있지만, 연성과 -400 화씨 온도에 이르기까지 힘든 유지됩니다. 합금 K-500도 -200도 화씨 비자 유지됩니다.
    K-500 합금의 부가적인 특징은 염 및 알칼리에서 화학적 및 해양 주변의 넓은 범위에서 우수한 내식성, 순수한 물을 비산 화성 산을 포함한다. HY MK-500은 비 자기 저항성 및 촉발된다. 또한 용접 할 때 합금 K-500 어닐링하는 것이 및 용접 구조물 스트레스 전에 노화 완화하는 것이 좋습니다.

    산업 역임 :

         gas & oil extraction

    화학 처리

    해양 공학

    Specification

    bar/rod

    AMS 4676



    Regular shape for all kinds of alloys
    Form Specification Supply Form Others
    Sheet Thickness:0.40-4.75mm,General Width:1000、1219、1500mm Whole Coil or piece of it Cold Annealed,Surface 2B、2E
    Plate Thickness:4.76-60mm,Width:1500、2000、2500mm,Length:3000、6000、8000、8500mm(Under 10mm plate can be coiled) Whole Coil or piece of it Single hot rolling,Solid solution annealed state,Surface 1D

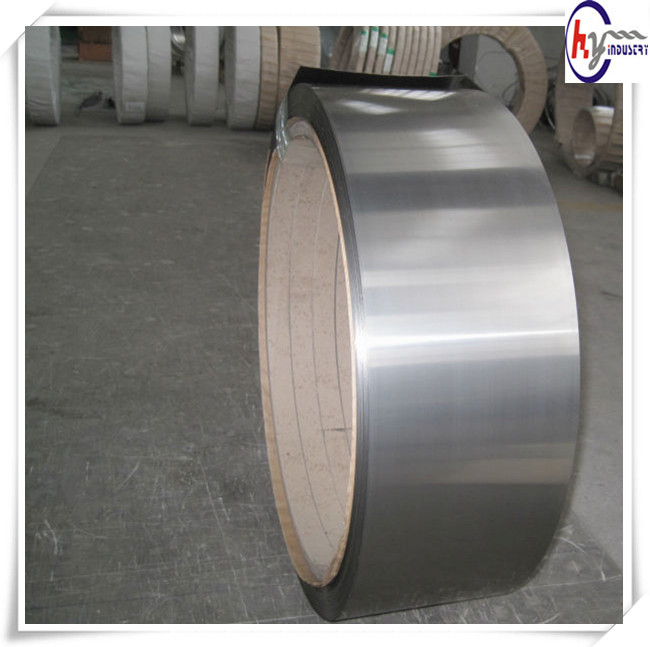

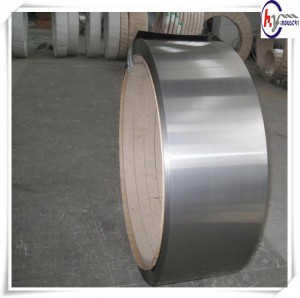

    Belt Thickness:0.10-3.0mm,Width:50-500mm Whole Coil or Specified size Cold Annealed,Surface 2B、2E
    Bar & Rod Rolled barΦ5-45mm,Length≤1500mm Polished Bar(circle、Square) Solution annealing,descaling
    Forged barΦ26-245mm,Length≤4000mm
    Weld tube Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm Base on your requirement
    Seamless Tube Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm Base on your requirement

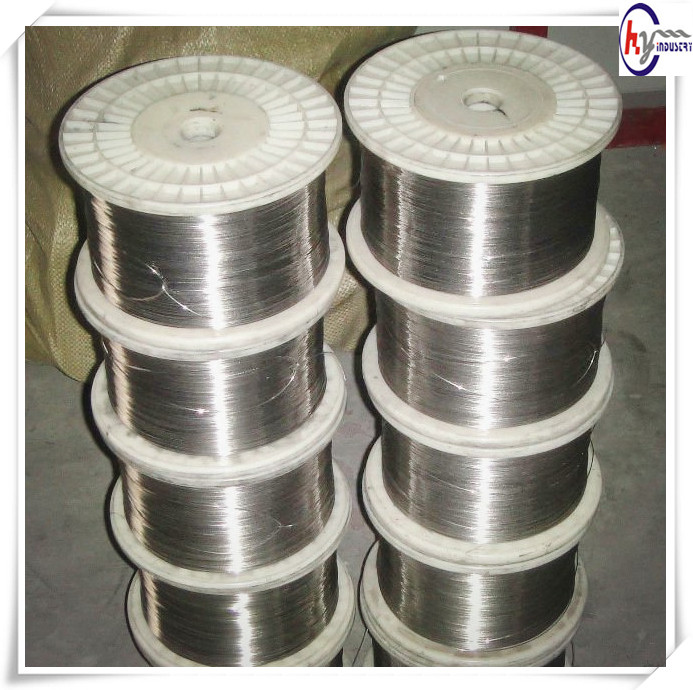

    Wire Outer diameterΦ0.1-13mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Forged piece discs,rings,squares,blocks,slabs Base on your requirement Steel, Alloy

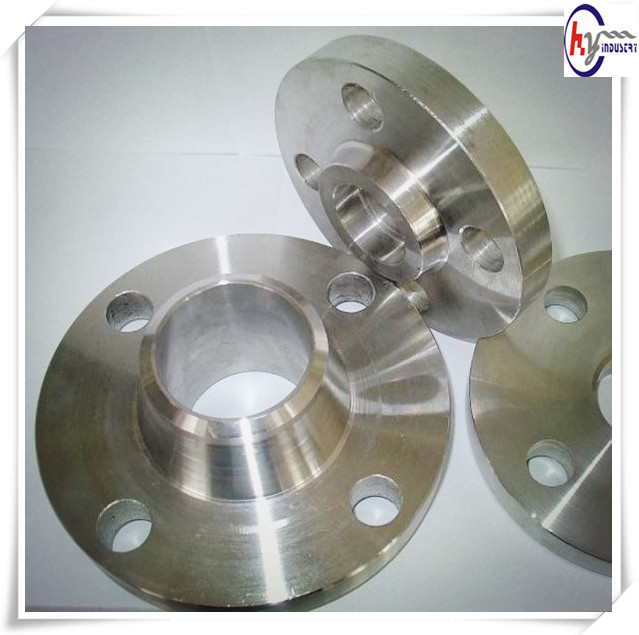

    Flangs All kinds of Flangs Base on your requirement Steel, Alloy
    Welding Material Coil wire Φ0.025mm-1.6mm Base on your requirement Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.
    Straight WireΦ1.6mm-4.0mm
    Welding rodΦ1.2mm-4.0mm
    Tube Elbow, three links, four links, different diameter size Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Explosive bonded laminate Raw Sheet Thickness≥2mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
