Permalloy 1J22

\

Short Introduction:

1J22 cobalt-based soft magnetic gold, saturated magnetic flux density can reach 2.35T. It has a high Curie temperature (980 ℃) and magnetostriction coefficient (60 * 10-6) and other characteristics.


  • Fob price: US $ 25 - 80 / Kilogram
  • Min.order quantity: 300kg
  • Port: Shanghai
  • Payment terms: L/C,T/T,30% down payment after order, balance against copy of B/L
  • Product Detail

    Product Tags

    Permalloy 1J22Material grades and equivalents

    Trademark

    GB

    ASTM

    UNS

    W.Nr

    1J22

    Chemical composition:

    Grade

    Chemical composition(%)

    C

    P

    S

    Mn

    Si

    Ni

    Cu

    V

    Co

    Fe

    Max

    1J22

    0.04

    0.02

    0.02

    0.03

    0.03

    0.5

    0.20

    0.80~1.20

    49.0~51.0

    Rest

    Characteristic as below:

    1J22 cobalt-based soft magnetic gold, saturated magnetic flux density can reach 2.35T. It has a high Curie temperature (980 ℃) and magnetostriction coefficient (60 * 10-6) and other characteristics.

    Processing conditions and application:

    1J22 is suitable for vibrating diaphragms, magnetostrictive transducers and buzzer elements for small size, light weight, large power spaceflight, aeronautic motors, electromagnet pole shoe power transformers, voltage and hearing aids.

    Regular shape for all kinds of alloys

    Form

    Specification

    Supply Form

    Others

    Sheet

    Thickness:0.40-4.75mm,General Width:1000、1219、1500mm

    Whole Coil or piece of it

    Cold Annealed,Surface 2B、2E

    Plate

    Thickness:4.76-60mm,Width:1500、2000、2500mm,Length:3000、6000、8000、8500mm(Under 10mm plate can be coiled)

    Whole Coil or piece of it

    Single hot rolling,Solid solution annealed state,Surface 1D

    Belt

    Thickness:0.10-3.0mm,Width:50-500mm

    Whole Coil or Specified size

    Cold Annealed,Surface 2B、2E

    Bar & Rod

    Rolled barΦ5-45mm,Length≤1500mm

    Polished Bar(circle、Square)

    Solution annealing,descaling

    Forged barΦ26-245mm,Length≤4000mm

    Weld tube

    Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm

    Base on your requirement

    Seamless Tube

    Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm

    Base on your requirement

    Wire

    Outer diameterΦ0.1-13mm

    Base on your requirement

    Ni & Ni alloy, Ti & Ti alloy

    Forged piece

    discs,rings,squares,blocks,slabs

    Base on your requirement

    Steel, Alloy

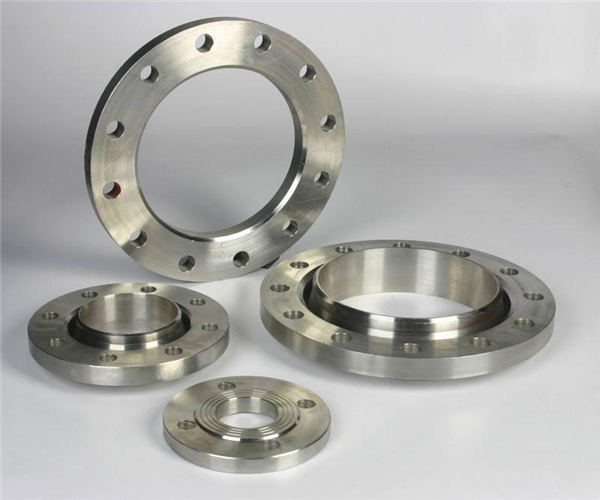

    Flangs

    All kinds of Flangs

    Base on your requirement

    Steel, Alloy

    Welding Material

    Coil wire Φ0.025mm-1.6mm

    Base on your requirement

    Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.

    Straight WireΦ1.6mm-4.0mm

    Welding rodΦ1.2mm-4.0mm

    Tube

    Elbow, three links, four links, different diameter size

    Base on your requirement

    Ni & Ni alloy, Ti & Ti alloy

    Explosive bonded laminate

    Raw Sheet Thickness≥2mm

    Base on your requirement

    Ni & Ni alloy, Ti & Ti alloy
